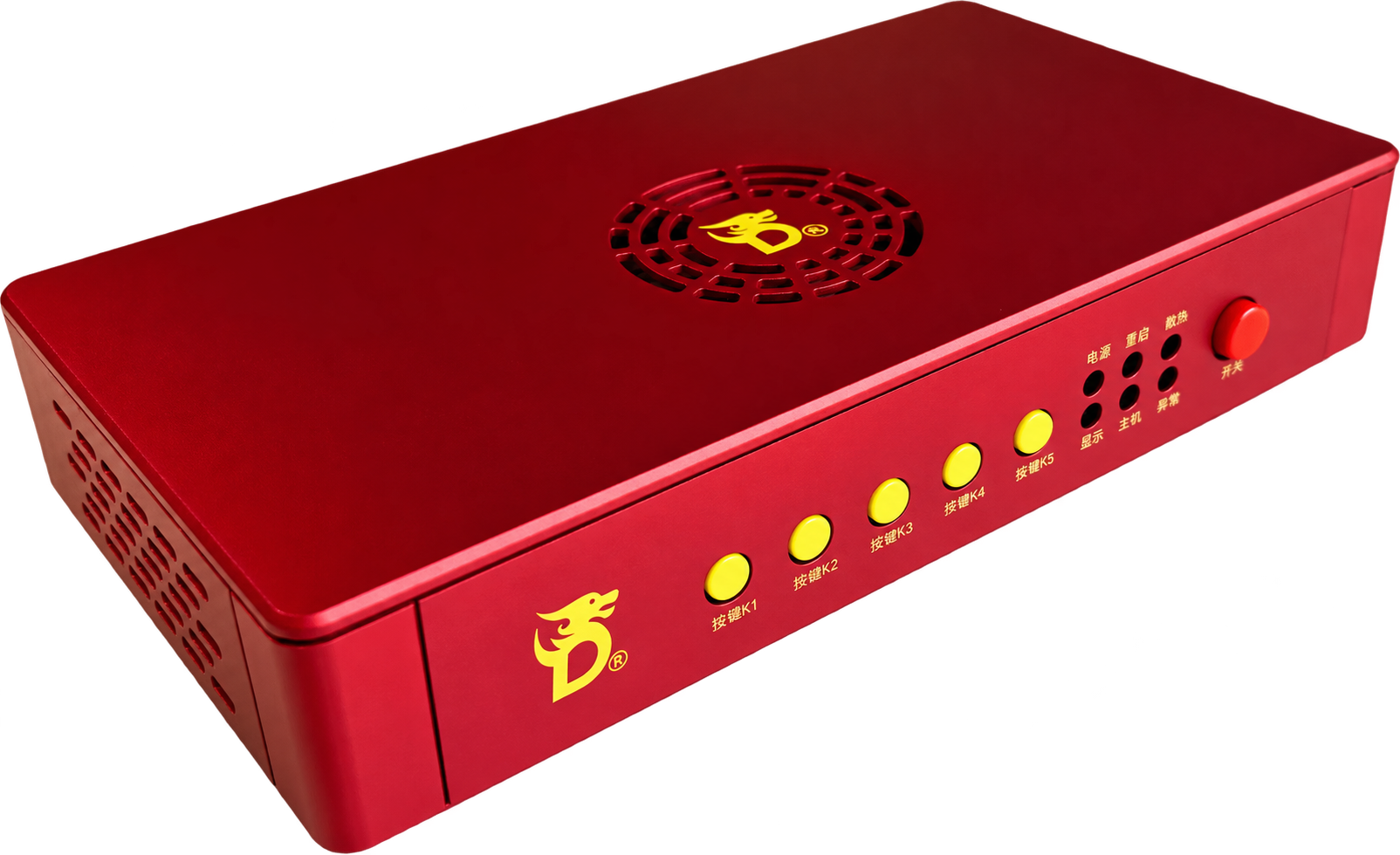

Product image for reference. Confirm exact model and availability before payment.

Fuser

DC686-4K

Name: DC686-4K
SKU: dc686
Price: 300.00 USD

$300.00

Shipping when bought alone: $38.00

DC686 Fuser

BUY NOW ADD TO BUNDLE

Before you order

Check compatibility and the product photo. Review your order and available payment methods at checkout.

Need setup instructions?

Read the setup guides or contact us before ordering if you are unsure which product fits your setup.

KNOW YOUR HARDWARE

Product overview

Product information

Dual-source overlay and switching

Dichen DC1A686 combines two computers' video on one monitor and can switch to the main or secondary source alone.

Display modes vary by revision

Supports 1080p, 2K, 4K and ultrawide modes. Some revisions are advertised at approximately 600 Hz at 1080p, 360 Hz at 2K and 160 Hz at 4K. These are revision-dependent claims, not a guarantee for every unit or display configuration.

Full DisplayPort connection

Three DisplayPort 1.4 ports connect the main computer, secondary computer and monitor. Supports monitor-information passthrough and EDID-related settings; consult the revision's manual.

Optional capture function

Capture-equipped revisions use the CAPTURE USB-C port to capture the original or combined video. Connect to USB 3.0 or faster. Confirm this function is included in the revision you purchase.

Display, controls and updates

On-screen information includes input mode, overlay status and temperature. Physical buttons adjust keying strength and display mode. The DATA USB-C port is for debugging and firmware updates; it is not required for everyday overlay.

Before ordering

High-refresh modes may require colour-format or custom-timing adjustments. Confirm the exact revision, ports, display modes and accessories before purchase.
